- Version 1.33 Mac
- Download 120
- File Size 22.06 KB
- File Count 1
- Create Date April 30, 2024
- Last Updated September 13, 2024
Customers with Freestyle2 keyboards purchased in 2024 or later who are experiencing key "ghosting" issues can perform a simple firmware update to resolve the problem. Check your serial number to confirm if your keyboard supports DIY firmware updates.
800HMBUSAAXXXX: Firmware Updates NOT Supported
800HMBUSBAXXXX: Firmware Updates Supported
Installation Instructions
- Download the file to your Mac and unzip
- Disconnect the keyboard and flip it over
- Use a pair of strong tweezers or a thin object to remove the rectangular dark gray adhesive plastic BOOTLOADER BUTTON COVER on the backside of the right key module (see red arrow below). Note: You need to wedge underneath the cover and then pry it up.
- Use a pencil or similar object to depress the exposed bootloader button (shown below) WHILE connecting the keyboard to your Mac, release 1-2 seconds after connecting
- If done correctly, a removable drive will appear on your Mac called “RPI-RP2”
- Copy/Paste the firmware file directly to that drive. The file will auto-install but your Mac may generate a file transfer message error message.
- Disconnect and reconnect your keyboard

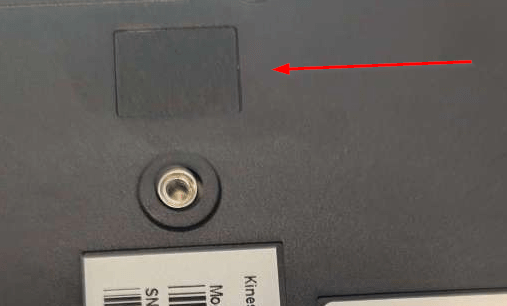

Bootloader Button Cover In Place

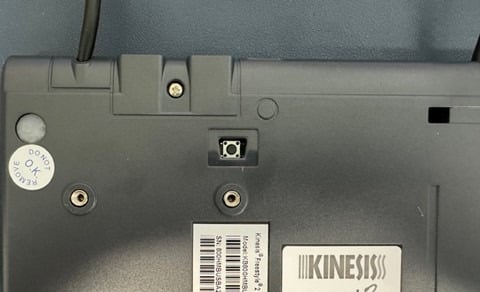

Bootloader Button Cover Removed
